LCARS Desktop Suite Complete: AA Title Text + Status Bar

Two commits close the LCARS desktop layout: lcars_wchrome_title wires AA title text into window chrome via the ui_glyph→cov_blend compositing path, and lcars_statusbar delivers the full-width bottom bar. All three desktop regions are now covered — top, windows, bottom. LCARS-WCHT-PASS + LCARS-SBAR-PASS x86. (sigil-video e5bcc7d, 18d629d)

lcars_gch_cov — one AA path for all text

lcars_gch_cov (e5bcc7d) is a per-glyph renderer that routes through the ui_glyph→cov_blend path. Key details:

cov=255 for lit atlas pixels (full coverage)
Per-channel linear blend: R, G, B blended separately
BGRA-aware: channel swap matches cov_blit's signature
At full coverage, routes identically to ui_glyph's AA compositing contract

This makes LCARS text rendering an instance of the same AA contract the rest of the Lumen UI uses — one path for all text, whether in a system panel or a window title.

lcars_wchrome_title — AA text in window chrome

lcars_wchrome_title (e5bcc7d): lcars_window_chrome() extended with a title string (up to 8 ASCII chars) rendered in the black title area via lcars_gch_cov(). Text color: lcars_tan(). Vertical centering when bh > 16.

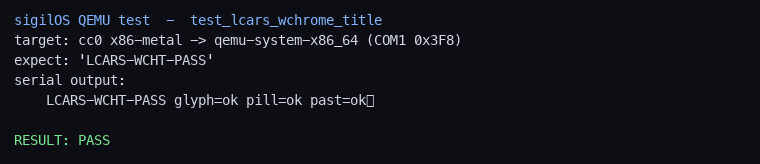

lcars_wchrome_title: AA tan title text in black window chrome — glyph=ok pill=ok past=ok x86 PASS

Test: 'T' atlas (row0=0xFF), chrome ww=140 bh=16, renders "T" — lit glyph pixel=tan (cov_blend fired), orange pill intact, past-glyph area=black. LCARS-WCHT-PASS.

lcars_statusbar — the bottom anchor

lcars_statusbar (18d629d): full-width status bar at fbh-bh. Three zones:

Orange pill (left)

4×bh wide — the LCARS bottom anchor, mirroring the panel_header pill shape.

Black center

Status area for live status text or ticker display.

Blue + tan indicators (right)

Two fixed indicator blocks, right-anchored.

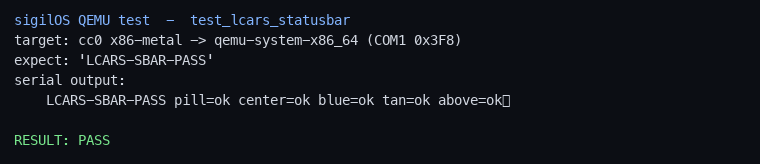

GPU path: gpu_submit (CAP_ACCEL; silicon-pending). Software-2D: lcars_fill_rect fill_span rows. Test: 160×120 fb, bh=14 — pill=ok center=ok blue=ok tan=ok above=ok.

LCARS-SBAR-PASS.

The complete LCARS desktop layout

All three desktop regions are now covered. The full LCARS skin is composable from three calls plus lcars_progress / lcars_data_strip for live readouts anywhere in between:

Region	Function	Key surfaces
`lcars_panel_header`	Top bar	Full-width orange+tan+gold sidebar stack
`lcars_window_chrome` / `lcars_wchrome_title`	Window decorations	Pill cap + black title (AA text) + tan accent
`lcars_statusbar`	Bottom bar	Orange pill + status center + blue+tan indicators

The LCARS API surface

11 public functions in core/lcars_theme.sg:

lcars_fill_rect
lcars_fill_circle
lcars_fill_qcircle_br
lcars_hbar
lcars_elbow
lcars_panel_header
lcars_label
lcars_progress
lcars_data_strip
lcars_window_chrome / lcars_wchrome_title
lcars_statusbar
